带隐藏约束昂贵黑箱问题的自适应代理优化方法

doi:10.15960/j.cnki.issn.1007-6093.2024.01.007

Abstract

Abstract:

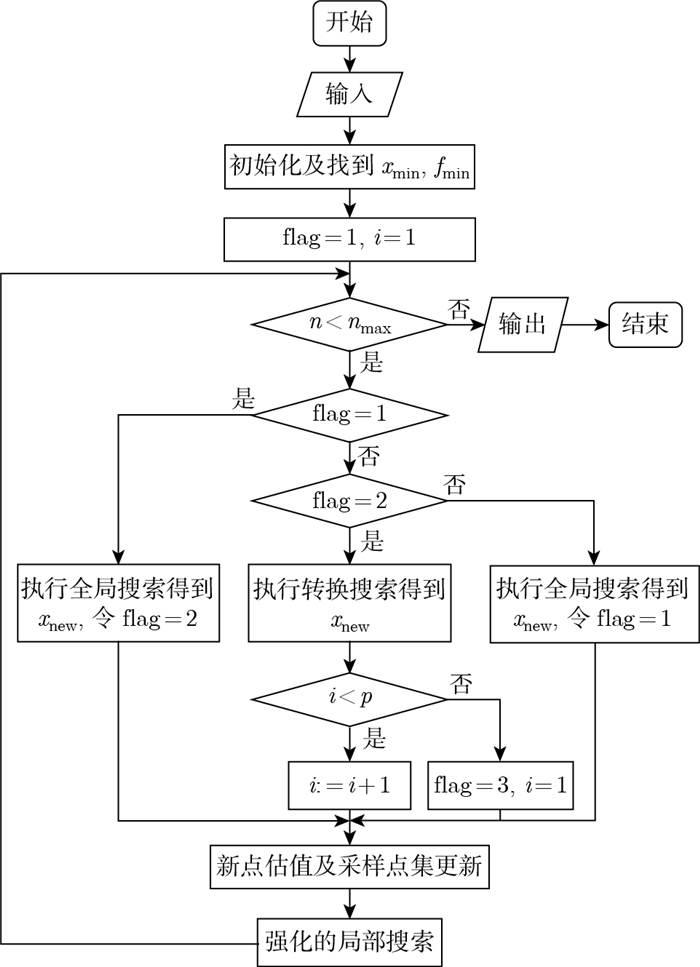

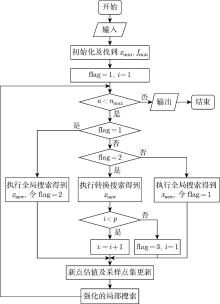

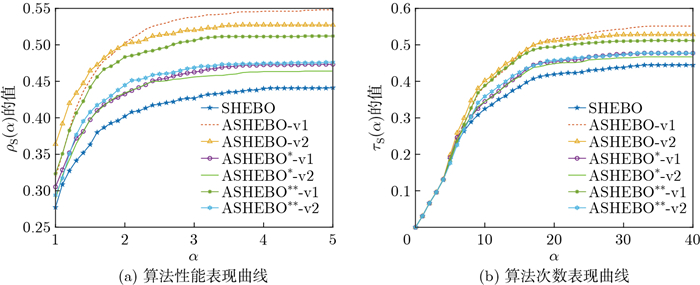

A surrogate optimization method with adaptive transition search strategy is proposed for expensive black-box problems with hidden constraints. In the sub-steps of the transition search, a variance related to the number of evaluated points is used for the generation of trial points by random perturbation to better balance the local and global searches. In order to better approximate the real black box objective function, an adaptively combined objective surrogate model is adopted. The effectiveness of the proposed algorithm is demonstrated by the results of the numerical experiments carried out on 50 test problems.

Key words: expensive black-box problems, global optimization, hidden constraints, surrogate optimization

CLC Number:

O221.2

Fusheng BAI, Mi LAN. An adaptive surrogate optimization method for expensive black-box problems with hidden constraints[J]. Operations Research Transactions, 2024, 28(1): 89-100.

Figures/Tables 6

测试问题	SHEBO	ASHEBO-v1	ASHEBO-v2	测试问题	SHEBO	ASHEBO-v1	ASHEBO-v2
(1, 2)	8.741 0$ \times10^0 $	8.479 9$ \times10^0 $	8.345 2$ \times10^0 $	(6, 10)	7.116 5$ \times10^0 $	6.512 1$ \times10^0 $	7.416 6$ \times10^0 $
(2, 2)	7.915 6$ \times10^{-2} $	6.720 6$ \times10^{-2} $	6.639 4$ \times10^{-2} $	(7, 10)	$ - $1.203 8$ \times10^1 $	-1.277 9$ \times10^1 $	-1.278 0$ \times10^1 $
(3, 2)	$ - $2.147 8$ \times10^2 $	-2.148 0$ \times10^2 $	-2.148 0$ \times10^2 $	(8, 10)	5.823 9$ \times10^{-1} $	5.404 0$ \times10^{-1} $	5.391 2$ \times10^{-1} $
(4, 2)	$ - $1.459 9$ \times10^2 $	-1.722 7$ \times10^2 $	-1.751 8$ \times10^2 $	(9, 10)	5.040 9$ \times10^0 $	4.667 4$ \times10^0 $	4.223 1$ \times10^0 $
(5, 2)	$ - $114.950 0$ \times10^2 $	$ - $95.397 0$ \times10^1 $	$ - $89.059 0$ \times10^1 $	(10, 10)	8.583 2$ \times10^{-6} $	8.583 3$ \times10^{-6} $	8.583 2$ \times10^{-6} $
(6, 2)	8.068 5$ \times10^0 $	7.859 7$ \times10^0 $	7.792 6$ \times10^0 $	(1, 20)	8.140 9$ \times10^0 $	8.051 6$ \times10^0 $	8.055 3$ \times10^0 $
(7, 2)	$ - $1.214 9$ \times10^1 $	$ - $1.214 9$ \times10^1 $	-1.299 4$ \times10^1 $	(2, 20)	7.885 2$ \times10^{-2} $	6.137 4$ \times10^{-2} $	3.291 2$ \times10^{-2} $
(8, 2)	5.309 7$ \times10^{-1} $	5.267 0$ \times10^{-1} $	5.277 0$ \times10^{-1} $	(3, 20)	$ - $2.144 0$ \times10^3 $	-2.148 0$ \times10^3 $	-2.148 0$ \times10^3 $
(9, 2)	3.802 2$ \times10^0 $	3.756 1$ \times10^0 $	3.597 5$ \times10^0 $	(4, 20)	$ - $90.236 0$ \times10^1 $	-182.530 0$ \times10^2 $	$ - $79.707 0$ \times10^1 $
(10, 2)	9.578 3$ \times10^{-7} $	9.541 7$ \times10^{-7} $	9.541 1$ \times10^{-7} $	(5, 20)	$ - $3.463 8$ \times10^3 $	-5.340 5$ \times10^3 $	-6.159 9$ \times10^3 $
(1, 5)	6.606 3$ \times10^0 $	6.605 7$ \times10^0 $	6.441 8$ \times10^0 $	(6, 20)	7.575 5$ \times10^0 $	7.268 7$ \times10^0 $	7.028 8$ \times10^0 $
(2, 5)	9.791 4$ \times10^{-2} $	9.340 2$ \times10^{-2} $	8.848 5$ \times10^{-2} $	(7, 20)	$ - $1.214 9$ \times10^1 $	$ - $1.207 4$ \times10^1 $	$ - $1.206 9$ \times10^1 $
(3, 5)	$ - $5.369 9$ \times10^2 $	-5.369 9$ \times10^2 $	-5.369 9$ \times10^2 $	(8, 20)	6.451 2$ \times10^{-1} $	6.128 7$ \times10^{-1} $	6.092 5$ \times10^{-1} $
(4, 5)	$ - $1.214 7$ \times10^2 $	$ - $1.167 5$ \times10^2 $	-1.237 8$ \times10^2 $	(9, 20)	7.777 5$ \times10^0 $	5.524 1$ \times10^0 $	7.442 5$ \times10^0 $
(5, 5)	$ - $5.730 1$ \times10^2 $	-5.874 2$ \times10^2 $	-7.048 3$ \times10^2 $	(10, 20)	1.812 0$ \times10^{-5} $	1.812 0$ \times10^{-5} $	1.812 0$ \times10^{-5} $
(6, 5)	7.057 3$ \times10^0 $	7.052 6$ \times10^0 $	7.219 0$ \times10^0 $	(1, 30)	8.840 5$ \times10^0 $	8.058 8$ \times10^0 $	8.269 7$ \times10^0 $
(7, 5)	$ - $1.192 7$ \times10^1 $	$ - $1.177 4$ \times10^1 $	$ - $1.162 3$ \times10^1 $	(2, 30)	7.134 0$ \times10^{-2} $	2.973 4$ \times10^{-2} $	2.100 4$ \times10^{-2} $
(8, 5)	5.284 2$ \times10^{-1} $	5.017 6$ \times10^{-1} $	5.039 0$ \times10^{-1} $	(3, 30)	$ - $3.222 0$ \times10^3 $	-3.222 0$ \times10^3 $	$ - $3.221 9$ \times10^3 $
(9, 5)	4.371 6$ \times10^0 $	4.220 5$ \times10^0 $	4.438 3$ \times10^0 $	(4, 30)	$ - $105.710 0$ \times10^2 $	-168.440 0$ \times10^2 $	$ - $60.843 0$ \times10^1 $
(10, 5)	3.815 4$ \times10^{-6} $	3.815 9$ \times10^{-6} $	3.815 7$ \times10^{-6} $	(5, 30)	$ - $3.307 9$ \times10^3 $	-4.007 4$ \times10^3 $	-4.986 3$ \times10^3 $
(1, 10)	6.819 2$ \times10^0 $	6.715 1$ \times10^0 $	6.661 1$ \times10^0 $	(6, 30)	7.877 6$ \times10^0 $	7.335 0$ \times10^0 $	7.405 7$ \times10^0 $
(2, 10)	8.077 6$ \times10^{-2} $	8.023 0$ \times10^{-2} $	5.035 0$ \times10^{-2} $	(7, 30)	$ - $1.215 0$ \times10^1 $	-1.219 6$ \times10^1 $	-1.215 0$ \times10^1 $
(3, 10)	$ - $1.074 0$ \times10^3 $	-1.074 0$ \times10^3 $	$ - $1.074 0$ \times10^3 $	(8, 30)	6.593 3$ \times10^{-1} $	6.419 8$ \times10^{-1} $	6.366 5$ \times10^{-1} $
(4, 10)	$ - $1.093 3$ \times10^2 $	-1.239 1$ \times10^2 $	-1.181 6$ \times10^2 $	(9, 30)	9.222 8$ \times10^0 $	9.589 0$ \times10^0 $	9.219 2$ \times10^0 $
(5, 10)	$ - $2.862 3$ \times10^3 $	-2.977 2$ \times10^3 $	-2.877 9$ \times10^3 $	(10, 30)	2.765 7$ \times10^{-5} $	2.765 7$ \times10^{-5} $	2.765 7$ \times10^{-5} $

References 15

1	Carter R G , Gablonsky J M , Patrick A , et al. Algorithms for noisy problems in gas transmission pipeline optimization[J]. Optimization and Engineering, 2001, 2 (2): 139- 157. doi: 10.1023/A:1013123110266
2	Ji C , Dames E , Wang Y L , et al. Propagation and extinction of premixed C5-C12 n-alkane flames[J]. Combustion Flame, 2010, 157 (2): 277- 287. doi: 10.1016/j.combustflame.2009.06.011
3	Booker A J , Dennis J E , Frank P D , et al. A rigorous framework for optimization of expensive functions by surrogates[J]. Structural Optimization, 1999, 17 (1): 1- 13. doi: 10.1007/BF01197708
4	Juliane M , Marcus D . Surrogate optimization of computationally expensive black-box problems with hidden constraints[J]. INFORMS Journal on Computing, 2019, 31 (4): 689- 702. doi: 10.1287/ijoc.2018.0864
5	Myers R H , Montgomery D C . Response Surface Methodology: Process and Product Optimization Using Designed Experiments[M]. New York: Wiley, 1995.
6	Digabel S L . Algorithm 909: NOMAD: Nonlinear optimization with the MADS algorithm[J]. ACM Transactions on Mathematical Software, 2011, 37 (4): 1- 15.
7	Mueller J , Shoemaker C A . Influence of ensemble surrogate models and sampling strategy on the solution quality of algorithms forcomputationally expensive black-box global optimization problems[J]. Journal of Global Optimization, 2014, 60 (2): 123- 144. doi: 10.1007/s10898-014-0184-0
8	Gutmann H M . A radial basis function method for global optimization[J]. Journal of Global Optimization, 2001, 19 (3): 201- 227. doi: 10.1023/A:1011255519438
9	白富生, 冯丹, 张柯. 求解昂贵黑箱全局优化问题的自适应采样组合响应面方法[J]. 运筹学学报, 2021, 25 (2): 1- 14. doi: 10.15960/j.cnki.issn.1007-6093.2021.02.001
10	Powell M J D. The theory of radial basis function approximation in 1990[M]//Advances in Numerical Analysis, Oxford: Oxford University Press, 105-210.
11	Jie H , Wu Y , Ding J . An adaptive metamodel-based global optimization algorithm for black-box type problems[J]. Engineering Optimization, 2015, 47 (11): 1459- 1480. doi: 10.1080/0305215X.2014.979814
12	Regis R G , Shoemaker C A . Combining radial basis function surrogates dynamic coordinate search in high dimensional expensive black-box optimization[J]. Engineering Optimzation, 2013, 45 (5): 529- 555. doi: 10.1080/0305215X.2012.687731
13	Juliane M , Marcus D . Online supplement for Surrogate optimization of computationally expensive black-box problems with hidden constraints[J]. INFORMS Journal on Computing, 2019, 31 (4): 689- 702. doi: 10.1287/ijoc.2018.0864
14	Dolan E D , Moré J J . Benchmarking optimization software with performance profiles[J]. Mathematical Programming, 2001, 91 (2): 201- 213.
15	Moré J J , Wild S M . Benchmarking derivative-free optimization algorithms[J]. SIAM Journal on Optimization, 2009, 20 (1): 172- 191. doi: 10.1137/080724083

径向基函数	$ \phi (r) $
三次(Cubic)函数	$ r^3 $
薄板样条(Thin plate spline)函数	$ {r^2}\log r $
线性(Linear)函数	$ r $
多二次(Multiquadric)函数	$ \sqrt {{r^2} + {\gamma ^2}} $, $ \gamma > 0 $
高斯(Gaussian)函数	$ \exp ({ - \gamma {r^2}}) $, $ \gamma > 0 $

测试问题	目标函数	隐藏约束	上下界约束
问题1	Ackley	Alpine01	$ [-10, 10]^d $
问题2	Bird	Rana	$ [-3\pi, 3\pi]^d $
问题3	Eggcrate	Giunta	$ [0, 10]^d $
问题4	Hansen	Alpine02	$ [0, 10]^d $
问题5	Rastrigin	Levy03	$ [-5, 5]^d $
问题6	Ackley	Levy03	$ [-5, 5]^d $
问题7	Alpine01	Schwefel26	$ [-12, 12]^d $
问题8	Wavy	Alpine01	$ [-\pi, \pi]^d $
问题9	Ackley	Vincent	$ [0.25, 10]^d $
问题10	Weierstrass	Vincent	$ [0.25, \pi]^d $

算法	ASHEBO-v1	ASHEBO-v2	ASHEBO*-v1	ASHEBO-*v2	ASHEBO**-v1	ASHEBO**-v2
$ Q $	80%	$ 74% $	66%	60%	72%	66%
